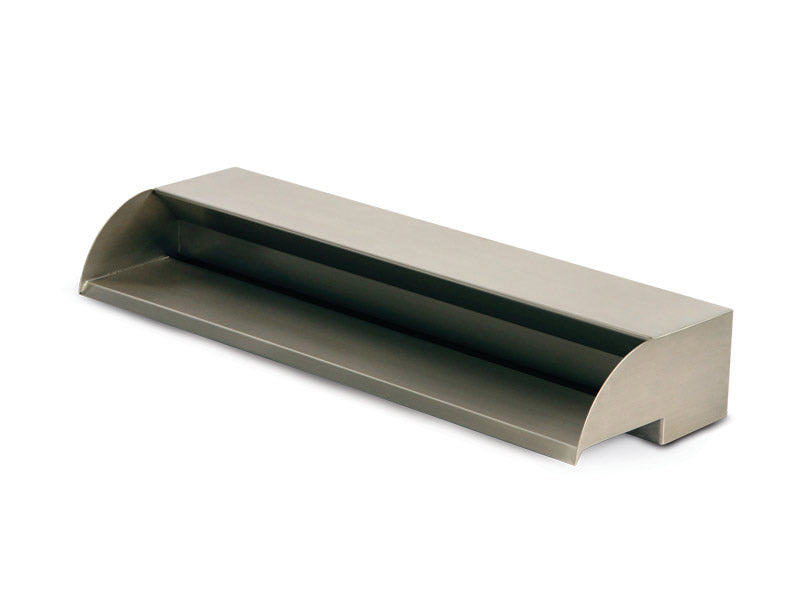

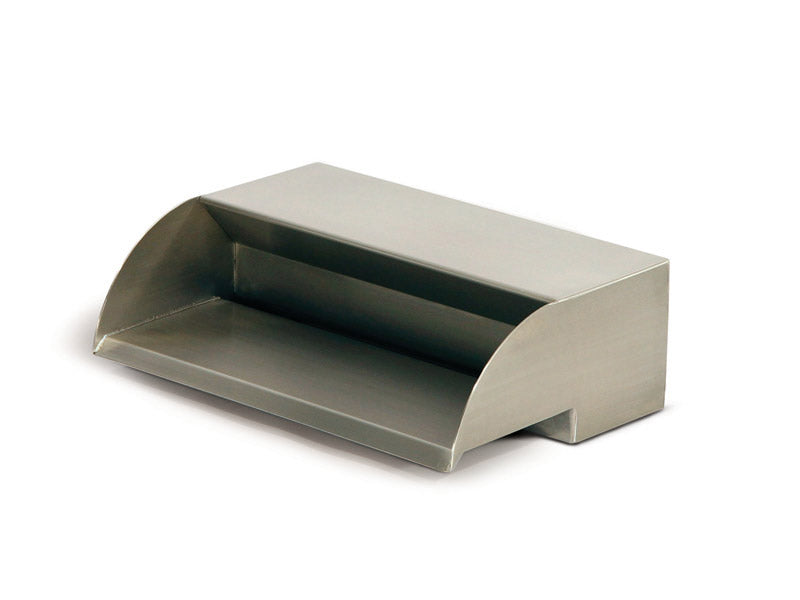

12" Spillways:

• Flow Rate: 1,200 gph
• Projection: 9-10" at 18"H & 1,200 gph
• Inlet: 1½" FIPT
• For Use With: Fresh Water Only
• Warranty: 3 year
• Dimensions: 12"W x 8½"D x 4"H

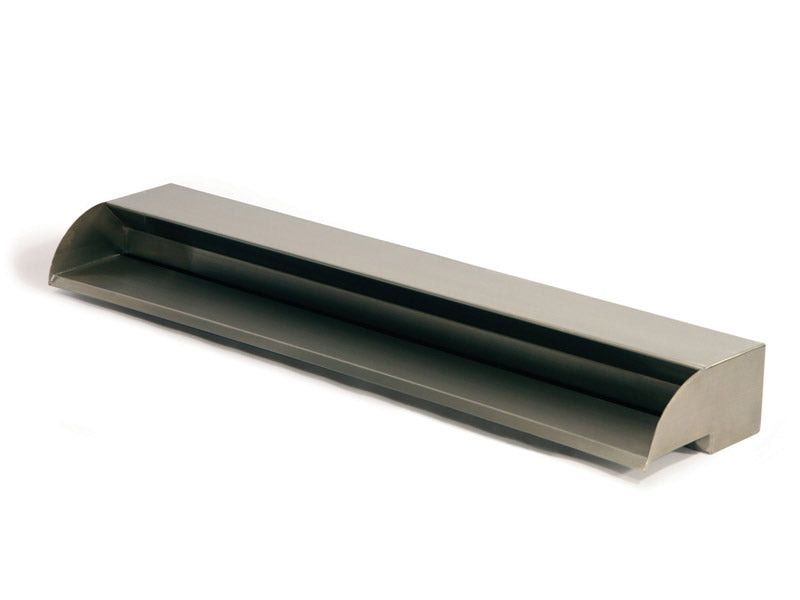

24" Spillways:

• Flow Rate: 2,400 gph
• Projection: 9-10" at 18"H & 2,400 gph
• Inlet: 1½" FIPT
• For Use With: Fresh Water Only
• Warranty: 3 year
• Dimensions: 24"W x 8½"D x 4"H

36" Spillways:

• Flow Rate: 3,600 gph
• Projection: 9-10" at 18"H & 3,600 gph
• Inlet: 1½" FIPT
• For Use With: Fresh Water Only
• Warranty: 3 year
• Dimensions: 36"W x 8½"D x 4"H

Cleaning Manual

Spillway Manual

• 304 Stainless Steel Spillways provide an enticing and durable focal point for fresh water applications in the hardscape
• Atlantic's copper finish and brushed stainless Spillways feature heavy-gauge construction for ageless durability

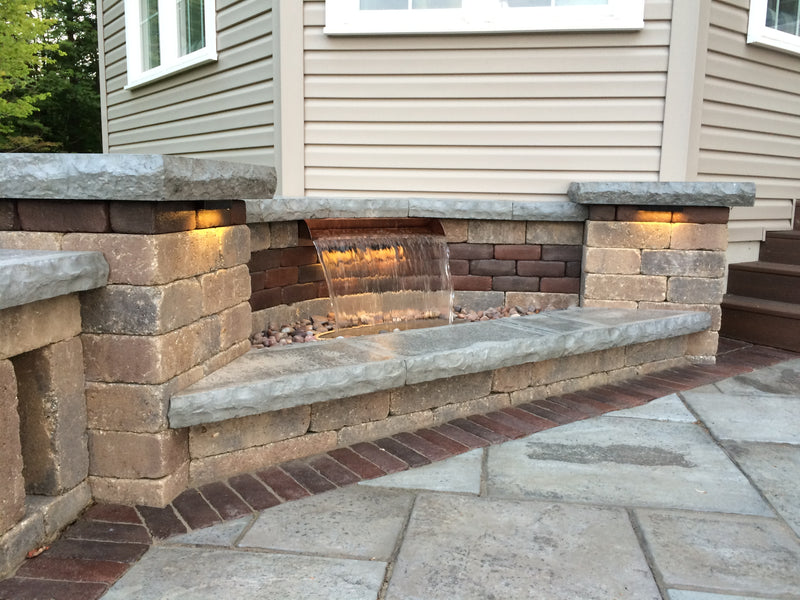

• Spillways replace 4-inch wall blocks for easy and convenient installation in standard wall block construction without cutting

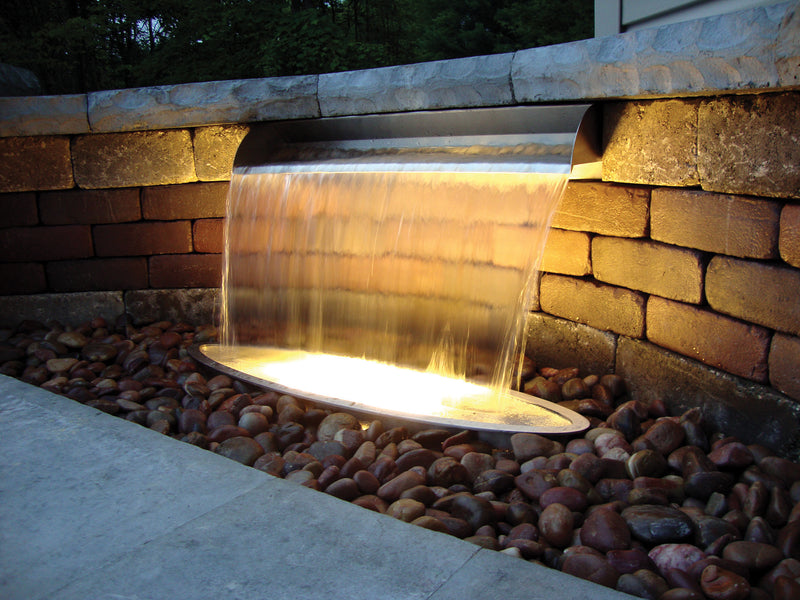

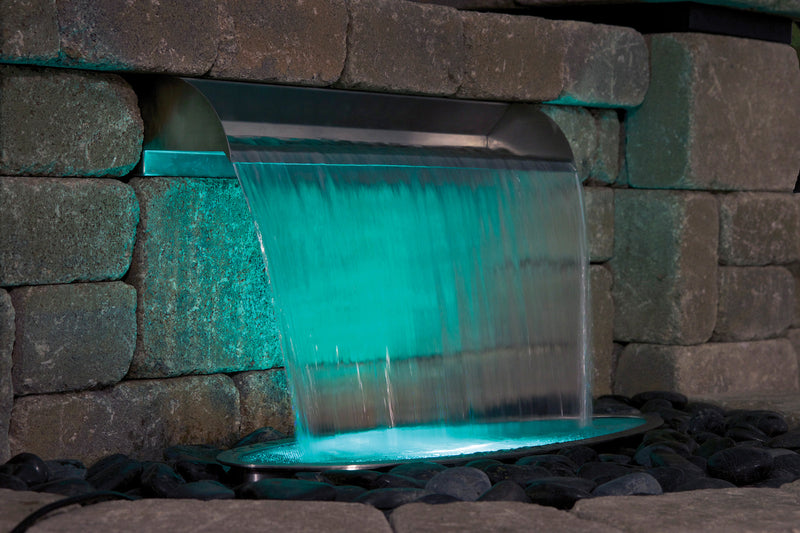

• Lively, energetic water flow enhances any vertical wall installation
• Load bearing body design supports 80 lbs. per linear foot for trouble free installations
• Non-clogging weir reduces maintenance in open basin applications
